F80 BMW m3 Kidney Grill Replacement Install

I changed the kidney grill “bib” from the factory chrome to a matching black; this is apparently pretty common cosmetic upgrade/change, and it was ultimately pretty easy to do–however, i found the online documentation/help to be a bit confusing so I thought I’d pass my learnings forward herein for others, feel free to post a question if I can help you out with more details.

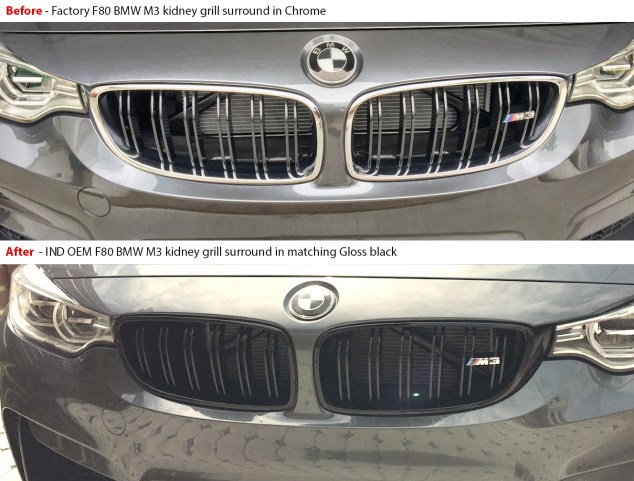

before after f80 grill

First, I bought from IND who were very good with customer service, prompt on delivery, and super knowledgeable when i called a few times with questions before and after purchase.  Highly recommend.  Here’s the F80 Front Grill Surround part that i ordered.

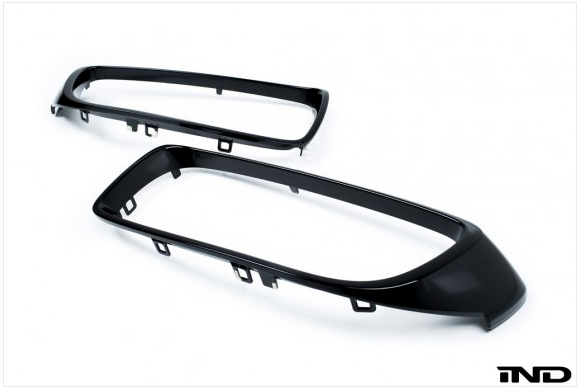

Here’s what the part looks like:

Front Grill

IND provides a DIY video tutorial which is generally correct, but, it was not sufficient for me to succeed with the installation.  Here’s the video:

And here’s what was wrong / additional information needed to be successful:

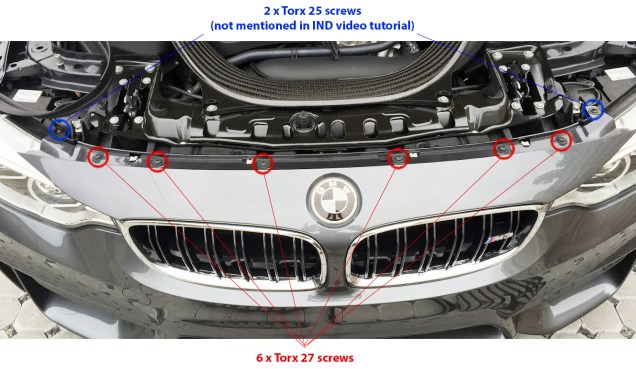

  • In addition to a Torx 27 tool to remove 6 screws that hold the top of the bumper to the frame (which need to be removed in order to lift the bumper forward to gain access with your hands to the rear where 8 separate tabs snap the plastic of the cover to tabs on the bumper), there are 2 ADDITIONAL screws that require a Torx 25 screw driver.  It may be possible to complete the project without pulling these additional Torx 25 screws, but I would not recommend as it would put needless pressure on the plastic bumper element.  See photo for location:

torque screws

  • With all screws removed, the next step is correct in the IND video, but grossly oversimplified.  it is VERY tricky to find and remove the 8 individual snap/pressure points to get the original grill off the bumper.  After 20 minutes of fidgeting and trying to figure out what to do, i found this very helpful and more accurate video illustration that correctly captures the effort and steps needed:
  • Despite being much harder/trickier then the IND video made the project look, it is actually only a 10 minute project and very DIY… just a little tighter space to work with and some small hands come in handy given the tight spaces.

I love the result and i think it is a great cost/benefit upgrade, much better looking!

Here’s some additional photos in the process which i wish I had as reference, hope they help you out:

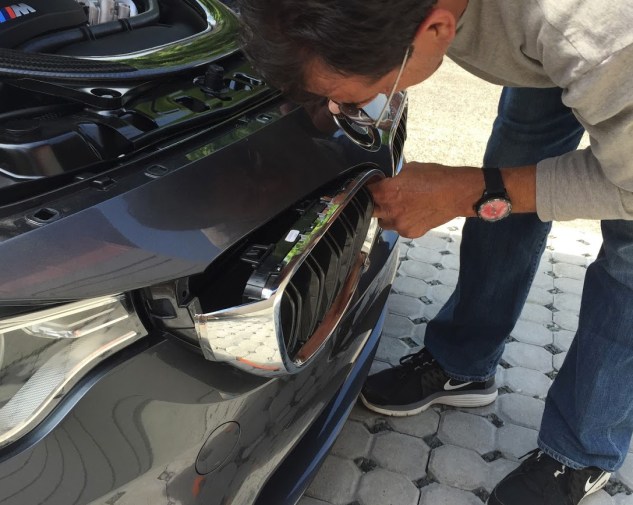

pulling off

In photo above: try to get one grill off first by starting with top 3 fasteners, then either the left/right one which allows to start to pull out of frame (as seen in picture, where top 3 and left 1 (so 4 of the 8) have been unfastened), with the right 1 and the bottom 3 still to go.  Once all 8 of them are unsnapped, the piece just pops out.  And THEN, the other grill is easy, as you can now stick your hand through the empty space you created, making for a much faster remove  of the 8 snaps.  It took me 10 minutes to do the left grill, and less than 1 minute to repeat for right side.

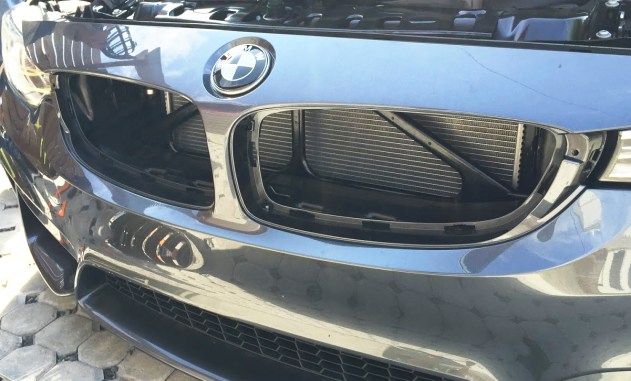

Photo below: shows both grills removed.  Inserting the new grills is a simple push/snap gesture, takes 2 seconds each.  So all the work is in getting the existing grills to pop-off!

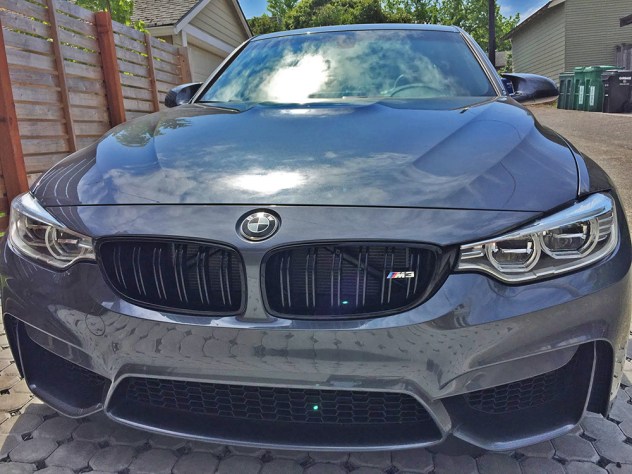

grill offAnd here is the finished result:

IMG_1478
